Product
- Major assembly incorporating refrigerant sub-module and coolant sub-module
- Compatible with refrigerants R134a/R1234yf/R290
- Maximum cooling capacity: 10kW; maximum heating capacity: 8kW
- Compatible with 22kW low-temperature water tanks and 800W electronic fan heat pump systems
- Modules incorporate a 20kW water-cooled condenser (WCC), 10kW chiller, three integrated water pumps (60W-150W), three-way and ten-way water valves
- Weight: 11kg
The thermal management controller serves as the “brain” of the new energy vehicle's thermal management system. It continuously monitors the temperatures of the battery, motor, and passenger compartment via sensor signals, precisely controlling actuators such as fans, water pumps, and compressors to maintain overall thermal equilibrium. This ensures vehicle safety, performance, and range.

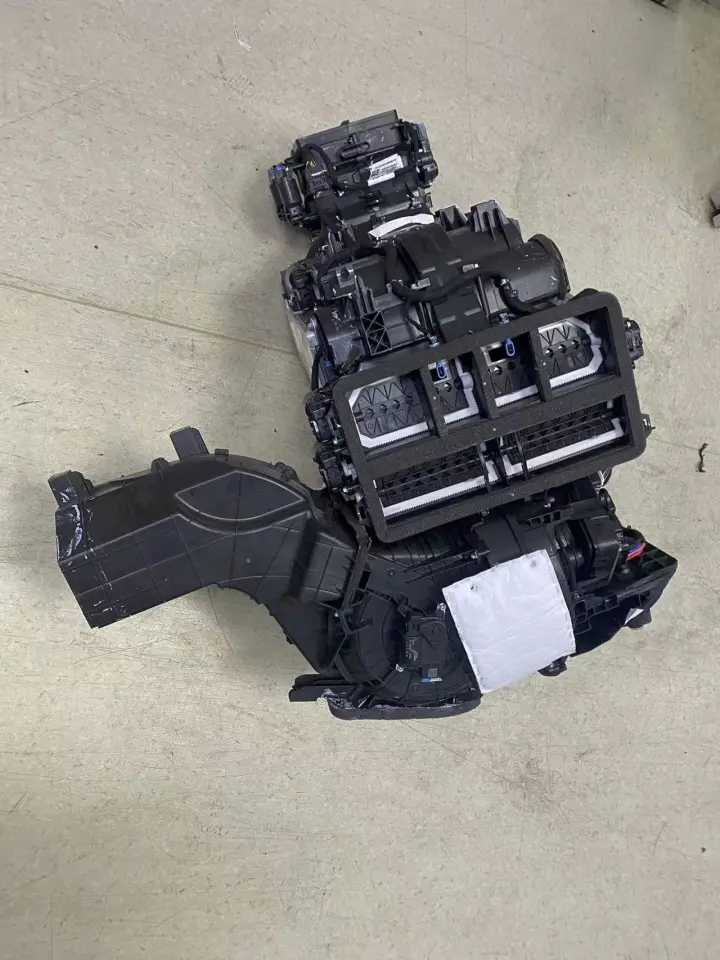

- Status: Centre-mounted integrated automatic air conditioning unit
- Temperature zones: Four zones (four modes/four airflow settings/four temperature zones)
- Air purification: Aromatherapy system + PM2.5 five-star activated carbon filter
- Evaporator: x1 (6-pass)
- Internal condenser: x1
- PTC: x1
- Fan: Brushless blower
- Modes: Vent/Bi-L/Foot/Defog/Defrost/Hi-L/Tri-L
- Sensors: EAT-Sensor x1 / DAT-Sensor x6 / AQS x1
- Motors: 120°x13 / 180°x1
- Air Handling Unit Dimensions: 745*520*545mm
- Air Handling Unit Cooling Capacity: ≥ 5.6kW
- Air Handling Unit ICD Heating Capacity: ≥ 4.6kW
- Air Handling Unit PTC Heating Capacity: ≥ 6.3kW
- Air Handling Unit Maximum Airflow Requirement: ≥650CMH
- Air Handling Unit Total Sound Pressure Level Requirement: ≤60dBa
- Air Handling Unit Total Weight: ≤15.8kg
